I. Product Introduction:

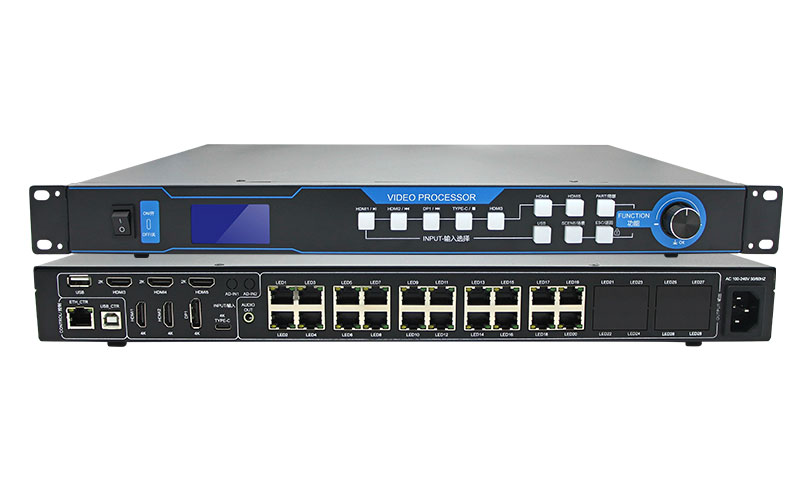

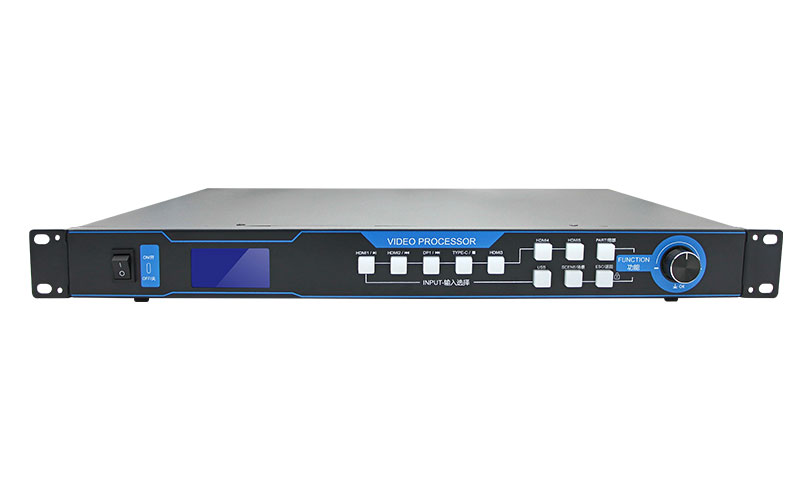

ZH-Z20R 4K two-in-one video processor is a product developed by ZH to meet the convenience of LED large screen installation. It supports high-definition signal input such as HDMI and DP; it supports max pixel 4096*2160@60Hz, 20pcs Gigabit network output port, and supports max width 16384 pixels or a max height 8192 pixels. It adopts a new communication architecture, high refresh, high brightness, new grayscale scanning engine, nanosecond synchronization, and can maintain smooth communication in poor communication conditions, allowing users to experience a more colorful and better LED world!

II. Functional Features：
1. Variety of input interfaces: including 2pcs HDMI 2.0, 3pcs HDMI 1.4, 1pcs DP1.2, 1pcs TYPE-C, and 1pcs USB flash drive;
2. Input resolution: max 4096*2160@60Hz pixels, supports any resolution setting;
3. The max load area: 13 million pixels, the max width 16384, and the max height 8192 pixels;
4. Arbitrary switching of video sources, and can scale the input image according to the display resolution;
5. Supports two-screen roaming;
6. Supports audio input and output;
7. Supports brightness and color temperature adjustment;
8. Low brightness and high gray;
9. Standard network port central control docking;
10. 20pcs Gigabit network output ports, arbitrary splicing up and down, left and right;
11. Hot backup: hot backup of two network ports in the same group and hot backup of multiple cards;
12. Supports ZH all series receiving cards, multi-function cards, and fiber optic transceivers;

Type	Name	Download
Product Specification	ZH-Z20R Product Specification	Download
Manual	ZH-Z20R Processor Manual	Download
