I. Function Introduction:

1. Multi-platform control: Support PC, Android and IOS.
2. Fast transmission rate: Use HTTP protocol and data compression, data transmission is smaller and faster.
3. Background transmission efficient: Proprietary algorithm, small data size, higher efficiency.
4. Simple operation: Simple UI design, debugging and use do not affect each other, and zero learning cost.
5. Multilayer overlay processing: Background and foreground do not affect operational efficiency.
6. WiFi +USB dual communication: Subtitle data can be transmitted through WiFi or USB.
7. Support various indoor and outdoor unit board: HUB75E interface match with various kind of the unit board.
8. Support module line type automatic scanning: Line type automatic scanning.
9. Support program timing play, fixed time play, designated time play: The program can play at will.
10. Support rainbow word, background, pictures and other materials: Support all kinds of common materials.
11. Support special chips: Such as ICN2038S.
12. Support external interface expansion: Such as temperature sensor.


II. Detail Parameters


Operating system:  PC device support: XP, Win7, Win8 and Win10. Mobile terminal support: Android(Android), IOS.

Display effect: support software dynamic background, magic run side overlay play.

Running type: phantom running, support the whole screen running/multi partition running/custom running.

Play type: support multi-program sequential play/timing play/fixed-length play/time-sharing play/lock single program play.

Adaptive range: support various 75E interface unit board.

Supporting software PC side : LED player V5 Mobile terminal: LED Mobile (color), support multi-program editing/multi-area display/multi-language version.

Area type: subtitle/time/analog dial/temperature.

Communication mode: WIFI, stable speed. USB, once plug and play.

Sensor: Temperature sensor

Clock: support

Working voltage: + 4.5v ~6V

Maximum power consumption: <1W

Operating temperature: -30°C~70°C


III. Loading Area

Model	HUB Port	Loading Area	Storage

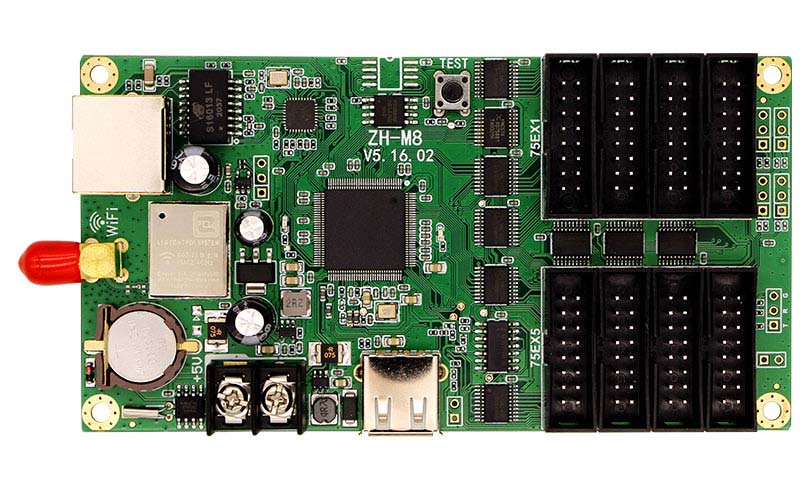

ZH-M8L	8*hub 75E	2048*128  1024*256 max width：2048； max height：512	16M

Type	Name	Download
Product Specification	Door head control system ZH-M8L	Download
